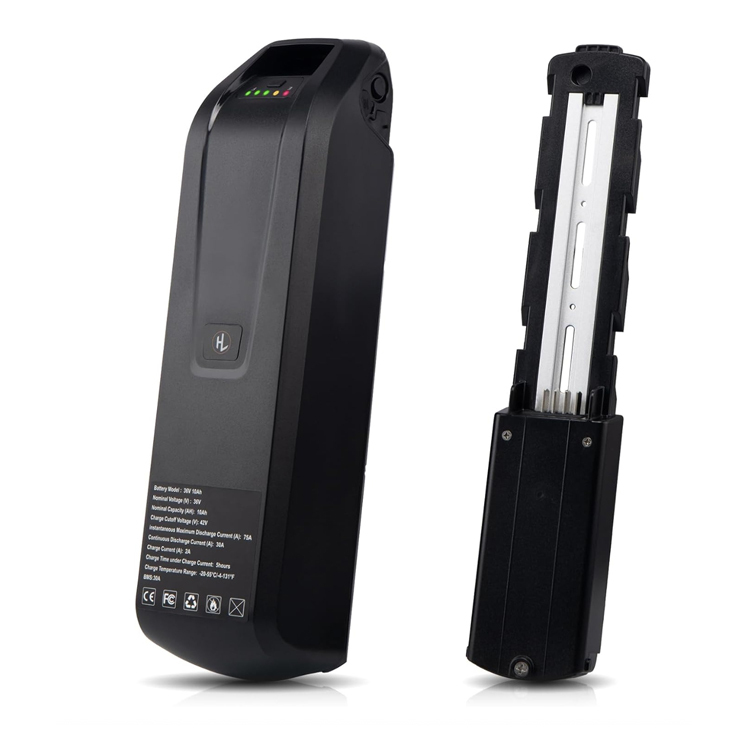

Battery For Electric Motorcycle 48V 20AH Ev Scooter Battery Lithium
Specification :
| Model | 36V/15Ah | 36V/20Ah | 48V/15Ah | 48V/20Ah | 52V/15Ah | 52V/20Ah |
| Nominal Voltage (V) | 36V | 36V | 48V | 48V | 52V | 52V |
| Nominal Capacity (Ah) | 15Ah | 20Ah | 15Ah | 20Ah | 15Ah | 20Ah |
| Energy | 540Wh | 720Wh | 720Wh | 960Wh | 780Wh | 1040Wh |
| Battery Dimensions (MM) | 367.5x95x89 | 367.5x95x122 | 367.5x95x89 | 367.5x95x122 | customized | customized |
| Layout/Terminals | Anderson | Anderson | Anderson | Anderson | Anderson | Anderson |
| Case /Packing | Aluminium | Aluminium | Aluminium | Aluminium | Metal Case | Metal Case |
| LED display | Optional | Optional | Optional | Optional | Optional | Optional |
| Blue tooth | Optional | Optional | Optional | Optional | Optional | Optional |
| Comms. | NO | NO | NO | NO | Optional | Optional |
| Charging Voltage | 54.6V | 71.4V | 71.4V | 71.4V | 84V | 84V |
| Optimum charge current | 3A~5A | 3A~5A | 3A~5A | 3A~5A | 3A~5A | 3A~5A |
| Max.Continuous discharge current | 50A | 80A | 50A | 80A | 50A | 80A |
| Peak discharge current | 100A | 100A | 100A | 150A | 150A | 150A |
| BMS Charge Voltage Cut-Off | 55.25V (4.25 ±0.025 vpc) (1.1 ±0.4 s) | 72.25V (4.25 ±0.025 vpc) (1.1 ±0.4 s) | 85.0V (4.25 ±0.025 vpc) (1.1 ±0.4 s) |
| BMS Discharge Voltage Cut-Off | 36.4V (2.8 ±0.08 vpc) (100ms) | 47.6V (2.8 ±0.08 vpc) (100ms) | 56V (2.8 ±0.08 vpc) (100ms) |
| Chemistry | Lithium-ion (NCM) |
| Cycle life | >2000cycle at 100% Depth of Discharge (DoD), up to 5000 cycles at 80% DoD |
| Operating temperatures | Standard 0℃~60℃ |
| Discharge -30℃~75℃ |
| Storage -20℃~45℃ |
| Storage performance | Capacity can be kept ≥ 80% in storage for 12months |
| Warranty | 3 years |
Features :
- Ideal Battery Replacement: E-bike batteries are equipped with intelligent BMS protection boards, which can provide multiple protections for the batteries, such as overcharge, overdischarge, overvoltage, overcurrent, short-circuit, temperature, and so on, with higher reliability and safety! It also ensures the consistency of voltage during use and extends battery life.
- Enjoy convenient power: Our battery packs are customized with high-end packaging for easy portability. The LED power indicator on the body can remind you to charge on time. And equipped with a safety lock to prevent theft. In addition, the USB port allows you to use it with other devices, such as mobile phones and Bluetooth speakers, anytime and anywhere.
- Long-term investment: Our batteries are made of waterproof ABS material and Class A quality cells, and the riding time is twice that of ordinary batteries. Each lithium battery has passed QC performance testing before leaving the factory and has more than 1,200 charge and discharge cycles to protect your riding.
- Meet multiple needs: 36V lithium battery is compatible with motorcycles, electric scooters, tricycles, folding bikes, city bikes, and balance bikes. Please check and confirm your vehicle voltage before placing an order to choose the battery that suits you.
Applications :
E-Bikes / Scooters / Wheelchairs / Tricycle / Golf Cart / Electric Vehicles/Boat
WHY CHOOSE US
Grade A Cells
The heart of our batteries features brand-new Grade A cylindrical cells, delivering superior energy density and cycle life compared to standard cells.
Built-in BMS
Our intelligent Battery Management System (BMS) provides:
-
Protection against: Over-charging, over-discharge, over-current, and short circuits
-
Low-voltage cutoff: Automatic power shutdown for safety
-
Real-time voltage/temperature monitoring
