All In One Battery 20kwh Lithium Battery For Home Energy Storage System
This all-in-one energy storage solution combines high-capacity LiFePO4 batteries with an optional inverter (5KW/8kW / 10kW / 15kW), offering a compact and efficient setup for residential applications. Designed with a modular, stackable structure and built-in casters, it allows for quick installation and easy mobility. With smart communication capabilities (CAN, RS232, RS485), compatibility with both off-grid and hybrid systems, and expandable configurations from 5kWh to 50kWh, it’s a flexible and future-proof choice for powering modern homes. Backed by a 10-year warranty and up to 8000 life cycles, it ensures reliable performance for years to come.
| MODEL | HY-01L | HY-02L | HY-03L | HY-04L | HY-05L | HY-06L | HY-07L |
| Battery Type | LiFePO4(LFP) |
| Nominal Voltage(V) | 51.2V |
| Num.of battery modules | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Nominal Capacity(KWH) | 5.12KWH | 10.24KWH | 15.36KWH | 20.48KWH | 25.6KWH | 30.72KWH | 35.84KWH |
| Dimension(mm) | 620*438*475 | 640*438*625 | 640*438*790 | 640*438*955 | 640*438*1120 | 640*438*1285 | 640*438*1450 |
| Weight(kg) | 75 | 120 | 160 | 210 | 250 | 300 | 345 |
| ELECTRICA |
| Discharge Voltage(V) | 40 - 48 |
| Charge Voltage(V) | 56 - 58.4 |
| Charge Current | 50A-100A |
| Charge/ Discharge Current(A) | 80A (Recommended) 100A(Max)/160A (Recommended) 200A(Max) |
| Cycle Life | >6000. 25°C |
| BMS |
| BMS Monitoring PRM | SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement |
| GENERAL |
| Operating Temp Range | -10℃-50℃ |
| Transport or Storage Temp Range | -20℃-45℃ |
| Humidity | 15% - 85% (No Condensing) |
| Installation | Floor Installation |
| Inverter (Optional) |
| Inverter output | 5kw | 10kw | 15kw |
| Rated output voltage | 230Vac(L/N/PE single-phase) |
| Output waveform | Pure sine wave |
| Rated battery voltage | 48Vdc |
| Voltage range | 40~60Vdc |

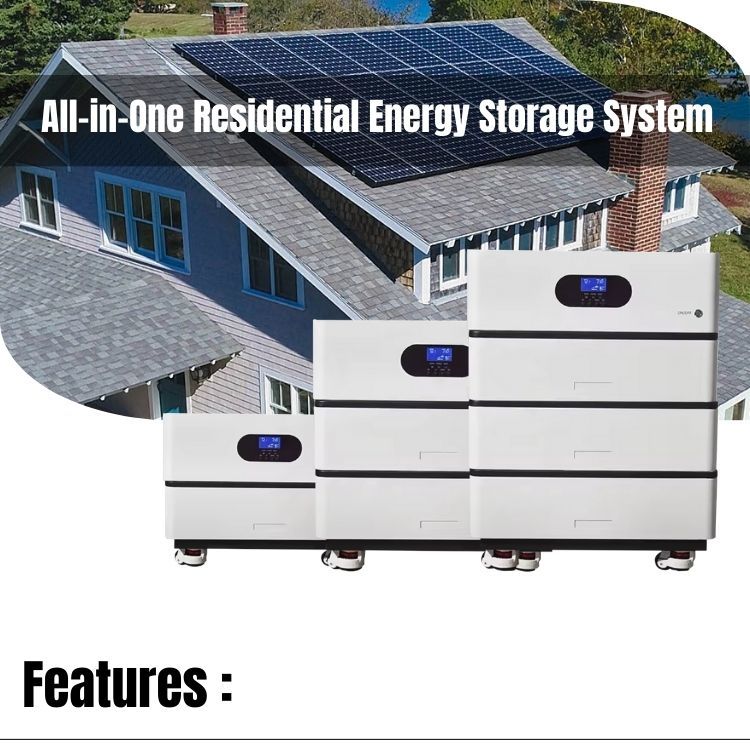

All-in-One Design
The system integrates high-capacity LiFePO4 batteries with an optional inverter (8kW / 10kW / 15kW), offering a streamlined, space-saving solution for residential energy storage.

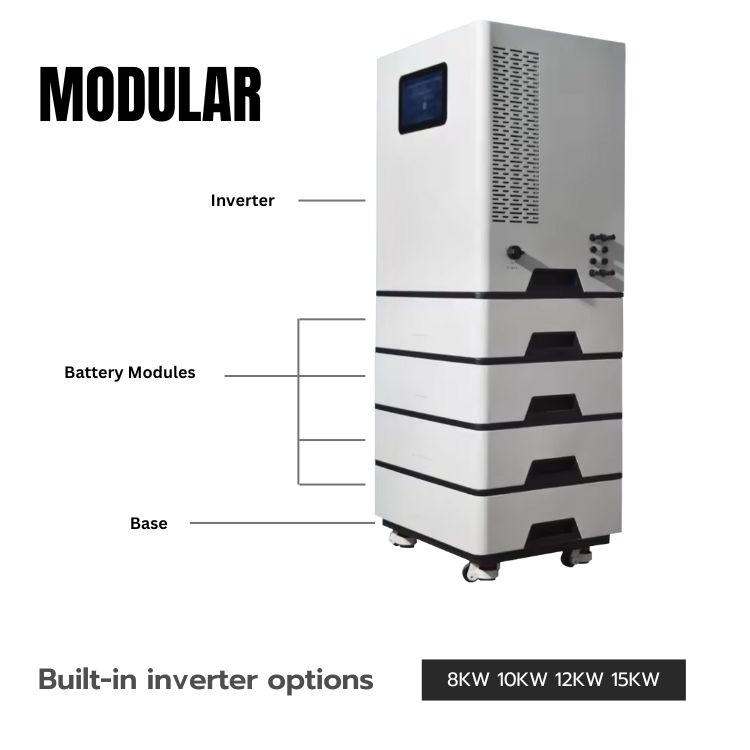

Easy Installation
With a modular, stackable structure and bottom casters, the system is designed for quick setup and effortless mobility.
Smart Communication
Supports multiple communication protocols including CAN, RS232, and RS485, ensuring smooth integration with various inverters and energy
management systems.
Flexible Application
Compatible with both off-grid and hybrid grid systems, meeting diverse energy needs in different scenarios.
Long Lifespan & Reliability
Utilizes Grade A LiFePO4 cells with a cycle life of up to 8000 cycles, backed by a 10-year warranty for long-term peace of mind.
Modular and Scalable
Available in configurations from 5kWh to 35kWh, the system is easily expandable to match your household’s growing energy requirements.
Power your home with confidence using our All-in-One Stackable Residential Energy Storage System, designed for seamless integration, smart performance, and long-lasting reliability.
